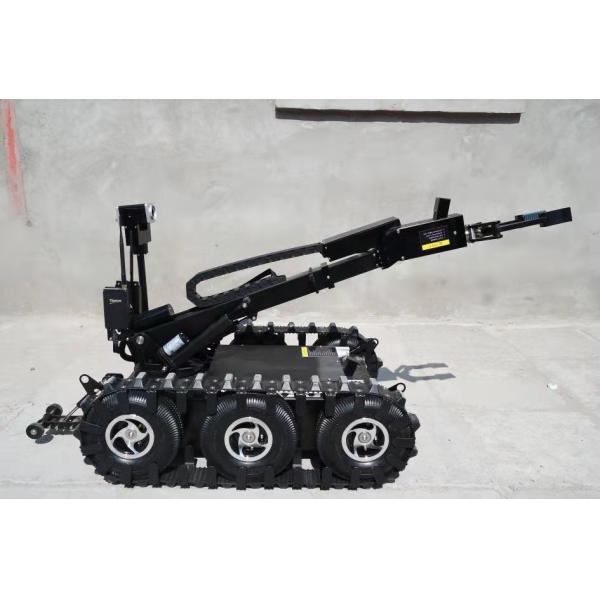

Flexible Small EOD Robot With Double Gripper Design
Ⅰ. Product Introduction
HW-400 EOD Robot has double gripper design, super multi-perspective
function, and with integration of reconnaissance, transfer and
disposal. As a size EOD robot, HW-400 has a small volume, weighing
only 37kg; but its operating capacity has reached the standard of
medium-sized EOD robot, and the maximum grabbing weight is up to
12kg.
This robot has the functions of "Intelligent Preset Position
Control", "Remote 3D Real-Time Display", "XYZ Gripper Pan Operation
based on Automatic Calculation", "Mechanical Buttons and Touch
Screen Double Redundant Control", "All-round Smart Protection" and
other intelligent and intelligent auxiliary functions. Because of
its intelligent and highly reliable design, users can "Dare to
Operate" and "Easy to Operate". Therefore, it can be widely applied
to city anti-terrorism, public safety, earthquake relief,
suspicious material inspection, roadside bombing exclusion and
other high-risk operations.
Ⅱ. Performance Characteristics
(1) Original "Double Gripper" design -- complete a variety of tasks
at once, reliable and stable
(2) Graphical design of dual redundant operation -- more friendly
interaction, more reliable operation
(3) Remote 3D real-time display -- closely monitoring, and the
operation is more intuitive
(4) Intelligent Preset Position Control design -- Easy and fast to
operate
(5) XYZ Gripper Pan Operation design based on automatic calculation
-- more precise and efficient control
(6) Mode adaptive image system -- seven-way image, the observation
angle is more abundant
(7) Integrated Design with Eight Degrees of Freedom Arm -- Control
is more flexible and safer
Ⅲ. Technical Specifications
| No. | Category | Parameter Name | Parameter Index |
| 1 | Structural | Robot size | ≤ 830mm×600mm×460mm (Fully retracted) |
| | Controller size | ≤360mm×210mm×70mm |
| | Robotic arm length | ≥ 2400mm (With extension joints, fully extended) ≥1700mm (Without extension joints, fully extended) |
| | Robot weight | ≤37kg (Including two batteries) |
| | Controller weight | ≤ 2kg (Excluding backpack) |
| 2 | Mobility | Maximum speed | ≥1.4m/s, (5 gear shifting, continuously variable speed) |
| | Vertical leaping over height | 400mm |
| | The width of leaping over trench | 400mm |
| | Gradeability | 40º |
| | Climbing stairs | 40º |
| 3 | Grabbing | Robotic arm flat stretch | ≥6kg |
| | Robotic arm retracted | ≥12kg |
| | Maximum clamping force | ≥300N |
| | Maximum clamping width | ≥160mm (Without "Widening Clamping Tool") ≥280mm (With "Widening Clamping Tool") |
| 4 | Robotic arm | No. of gripper | 2 |
| | Degree of freedom | 8 |
| | The scope of work | 0º～360º rotation (horizontal plane) |
| | The maximum observation height | ≥2600mm |
| | Maximum gripping height | ≥2000mm |
| | The deepest observation height | ≥1700mm |
| | The deepest gripping height | ≥1100mm |
| | Farthest gripping distance | ≥1600mm |
