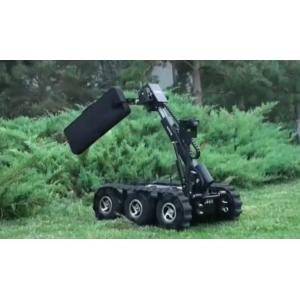

EOD Robot
Model: HW-18
ADVANTAGES
Maximum displacement speed is 1.2 m/s .
Grade ability:
On the slope or stairs whose length is more than four times of
robot length and incline is more than 40° with horizontal ground,
the robot can climb to top of slope, stop a time at any position of
slope interspaces and stay firmly.
Surmountable obstacle height on the flat ground:
Measured EOD robot can cross wood beam or cement square pier of
section 150mm×150mm and length more than 800mm.
Passable width:
EOD robot can pass through the road of width 700mm.
Spinning on the spot:
In horizontal cement ground or bituminous pavement, EOD robot can
turn on the spot clockwise or anticlockwise 360º respectively.
Load Ability:
Measured robot can move on cement ground with 160KG loading and
keep functions normally.
Technical Parameter
| Robot Body |
| Materials | Aircraft-grade aluminum alloy, precision machining |
| Dimensions | L*W*H: 910 * 650 * 500 mm |
| Weight | 90kg (without accessories, package and control box) |
| Battery | DC24V lead acid rechargeable battery |
| Working time | ≥ 3 hours |
| Maximum Speed | ≥1.2m/s |
| Loading Capacity | When loading 140KG, it can move normally (actual measurement). |
| Lift Capability | It can move with clamping weights of 40K and will not drop (actual
measurement). |
| Grade Ability | It can climb up the slope of 45° and stop steadily on the slope. |
| Climbing Stairs Ability | With traction-free assist, it can climb up and down the stairs of
160mm step height and 45°angle slope. |
| Turning Ability | In horizontal cement ground or bituminous pavement, the robot can
turn clockwise or anticlockwise 360º. |
| Limited Passage Width | ≤700mm |
| Over-obstacle Capacity | It can cross the obstacle of 320mm height. |
| Max. Mechanical Arms Spread | 1650mm |
| Gripper of Manipulator Maximum Expansion Range | 250mm |
| Arm Extension when stretch out and draw back | 500mm |
| Control Distance | Wireless control: ≥150m (visible range); wire control: 100m
(optional 200m); |
| Forward Camera | Color infrared induction |
| Backward Camera | Color infrared induction |
| Cradle Head Various focal Camera | Color infrared induction |
| Manipulator Gripper Camera | Color infrared induction |
| Floodlight | Two group LED floodlight (one group on the front and back) |
| Control Terminal |
| Box | Portable, waterproof, dustproof, high strength |
| Size | ≤ L 460 * W 370 *H 260 mm |
| Weight | ≤ 10kg |
| Display Screen | 12-inch HB LCD, wide viewing angle, outdoor clear picture |
| Operation | High-quality rocker handle, human software interface design, easy
observation and convenient operation |
| Display Image | It can monitor 4 video signals simultaneously or separately amplify
one of 4 video signals |
| Battery | Rechargeable 24V lithium battery, working time ≥ 3 hours when fully
charged. |
