Five Optical Channels Intelligent Observation Device Multi Function Binocular

Ask Lasest Price
Brand Name :	HEWEI
Model Number :	HW-TM-B
Certification :	YES
Price :	USD/Set FOB shenzhen
Payment Terms :	T/T
Supply Ability :	10 sets per month
Delivery Time :	20 working days

Add to Cart

Product Details
Company Profile

Five Optical Channels Intelligent Observation Device Multi Function Binocular

Five Optical Channels Multi-function Binocular

Model: HW-TM-B

1. Product Description

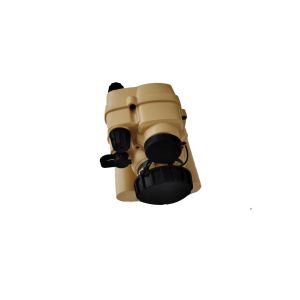

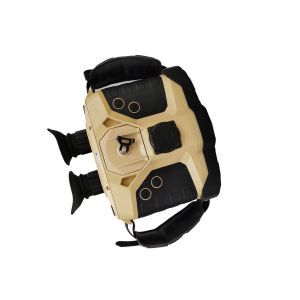

HW-TM-B is a small intelligent observation device integrating infrared, low-light, visible light and laser. It has built-in location module, digital magnetic compass, and laser rangefinder. With image fusion function, it can be used for day and night observation and target search. The images and videos can be taken, and the information can be uploaded in time. It is comfortable and portable to use.

Product Features

● Five Optical Channels

● Image Fusion

● Multiple Functions

● Intelligent

● Light weight

● Long battery life

● IP 67 protection level

● High Reliability

Technical Parameters

Item	Infrared Channel	Low Light Channel	TV Channel
Resolution	640×512,12μm	750×600,8μm	2400×1920,2.7μm
Spectral Band	8~14μm	0.4~1.1μm	0.4~0.63μm
FOV	6.1°×4.8°	6.8°×5.5°	4.6°×3.7°
Laser Rangefinder	Eye safe:1535nm Max Measuring Range:≥6km Measuring Accuracy:2m
Location Module	Location Mode:BD+GPS Horizontal Location Accuracy (CEP):5m Elevation Location Accuracy (PE):10m
Digital Magnetic Compass	Azimuth Measurement Range:0°~360° Azimuth Measurement Accuracy:0.5°(RMS) Pitch Angle Measurement Range:-90°~+90° Pitch Angle Measurement Accuracy:0.4°(RMS) Inclination Angle Measurement Range:-180°~+180° Inclination Angle Measurement Accuracy:0.5°(RMS)
Laser Pointer	Wavelength:830nm Power:5mW Security level:Class IIIA
Display	1280×1024 OLED
Storage	10000 JPG&4h AVI
Ocular Lens Diopter	-4~+4
Weight	≤2.1kg(With Battery)
Operating Time	≥8h
Dimension	198×210×105mm
Interface	External Power In/USB/PAL/RS232 HDMI WIFI
Operating Temperature	-40℃~+55℃
Storage Temperature	-55℃~+70℃
Protection Level	IP67

Operating Distance
		Infrared Mode	TV Mode
Human Target 1.7m×0.5m	Identification	0.85km	3.00km
	Recognition	1.70km	4.50km
	Detection	5.00km	10.07km
Vehicle Target 2.3m×2.3m	Identification	1.20km	4.00km
	Recognition	2.40km	6.00km
	Detection	6.00km	12.20km
