    Explosive Handling Eod Tool Kits Battery Powered With Mobile Robot Body

    Ask Lasest Price
    Brand Name : HEWEI
    Model Number : HW-18
    Certification : YES
    Price : USD/Set FOB shenzhen
    Payment Terms : T/T
    Supply Ability : 10 sets per month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Explosive Handling Eod Tool Kits Battery Powered With Mobile Robot Body

    Flexible Scrolling EOD Robot With Control System


    Model: HW-18

    Description

    HW-18 EOD robot is special equipment for explosive ordnance disposal personnel disposing of and destroying suspicious explosive. This robot can be used for explosive handling in conditions of complex topography, Its purpose is to replace explosive ordnance disposal personnel, carry and transfer suspicious explosive and other hazardous goods; What’s more, it can destroy bomb by disruptor installed through water cannon interface for EOD personnel, observe on the spot and transmit images in real time for security personnel, be equipped with shotgun to attack criminals, and carry detecting equipment to inspect hazardous area and goods.


    Technical Parameter

    Robot Body
    MaterialsAircraft-grade aluminum alloy, precision machining
    DimensionsL*W*H: 910 * 650 * 500 mm
    Weight90kg (without accessories, package and control box)
    BatteryDC24V lead acid rechargeable battery
    Working time≥ 3 hours
    Maximum Speed≥1.2m/s
    Loading CapacityWhen loading 140KG, it can move normally (actual measurement).
    Lift CapabilityIt can move with clamping weights of 40K and will not drop (actual measurement).
    Grade AbilityIt can climb up the slope of 45° and stop steadily on the slope.
    Climbing Stairs AbilityWith traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope.
    Turning AbilityIn horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º.
    Limited Passage Width≤700mm
    Over-obstacle CapacityIt can cross the obstacle of 320mm height.
    Max. Mechanical Arms Spread1650mm
    Gripper of Manipulator Maximum Expansion Range250mm
    Arm Extension when stretch out and draw back500mm
    Control DistanceWireless control: ≥150m (visible range); wire control: 100m (optional 200m);
    Forward CameraColor infrared induction
    Backward CameraColor infrared induction
    Cradle Head Various focal CameraColor infrared induction
    Manipulator Gripper CameraColor infrared induction
    FloodlightTwo group LED floodlight (one group on the front and back)
    Control Terminal
    BoxPortable, waterproof, dustproof, high strength
    Size≤ L 460 * W 370 *H 260 mm
    Weight≤ 10kg
    Display Screen12-inch HB LCD, wide viewing angle, outdoor clear picture
    OperationHigh-quality rocker handle, human software interface design, easy observation and convenient operation
    Display ImageIt can monitor 4 video signals simultaneously or separately amplify one of 4 video signals
    BatteryRechargeable 24V lithium battery, working time ≥ 3 hours when fully charged.

    Product Pictures

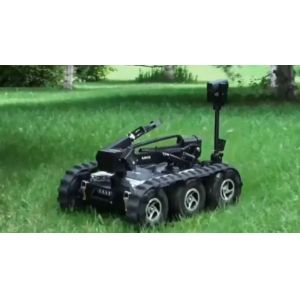

    Explosive Handling Eod Tool Kits Battery Powered With Mobile Robot Body


    Explosive Handling Eod Tool Kits Battery Powered With Mobile Robot Body


    Company Introduction


    In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.


    In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.


    In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.


    Jiangsu Factory





    Shenzhen Research Centre





    Overseas Exhibitions





    Certificates





    Staff Photo


    Staff from Jiangsu Factory


    Staff from Headquarters


    Staff from Shenzhen research centre
