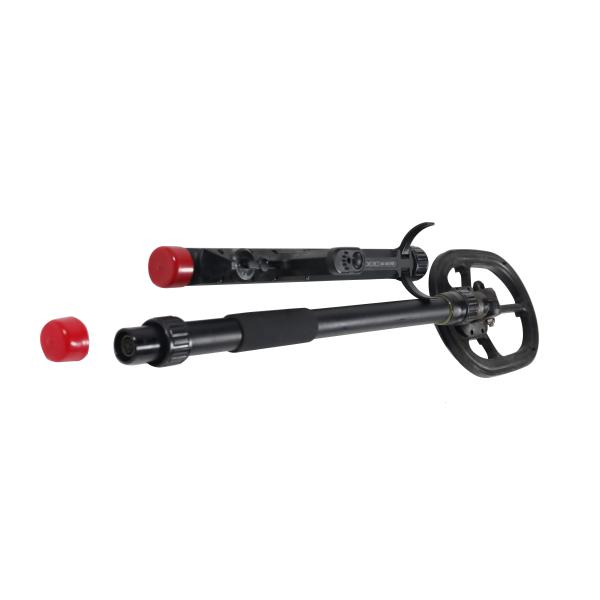

Single Soldier Operating 1120mm Hand Held Mine Detector Pulse Induction

Ask Lasest Price
Brand Name :	HEWEI
Model Number :	UMD-III
Certification :	YES
Price :	USD per set FOB Shenzhen
Payment Terms :	T/T
Supply Ability :	300 pieces per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Single Soldier Operating 1120mm Hand Held Mine Detector Pulse Induction

Hand-held (single-soldier operating) metal detector, mine detector

Mine Detector

Introduction

UMD-III mine detector is a widely used hand-held (single-soldier operating) mine detector.It adopts high frequency pulse induction technology and it is highly sensitive, especially suitable for detecting minor metal mines. The operation is simple, so the operators can use the device only after a short training.

Features

The mine detector is waterproof, which can be detected under water. It is controlled by a microprocessor with accurate timing, fast conversion and strong signal processing capability. The mine detector has a strong sensitivity to identify very small metal objects.

Technical Parameters

Weight	3kg
Transport weight	12.3 kg
The detecting pole length	1120mm～1560mm
Battery	LR20 Manganese alkali dry cell
Battery life	At maximum sensitivity - 12 hours At medium and low sensitivity - 18 hours It alarms by sound and light emitting diode when the voltage is under voltage.
Detection sensitivity	0.05g. Stainless steel at 75mm distance from the probe
Operating humidity	Fully enclosed and be able to operate 2 m under water.
Operating and storage temperature	-25°C～70°C
The detecting coil	The longest detecting pole is 1120mm, the shortest is 700mm, and weighs 1100g. Glass resin telescopic rod, the surface is coated to protect the environment.The diameter of detecting coil is 300mm, black ABS material, surface is treated with EMC, and a hybrid RX coil is used to improve the signal/noise ratio.

Company Introduction

In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.

In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.

In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.
