Sound Vibration Warning Modes Portable UAV Detection Jamming System

    Buy cheap Sound Vibration Warning Modes Portable UAV Detection Jamming System from wholesalers

    Buy cheap Sound Vibration Warning Modes Portable UAV Detection Jamming System from wholesalers
    • Buy cheap Sound Vibration Warning Modes Portable UAV Detection Jamming System from wholesalers

    Sound Vibration Warning Modes Portable UAV Detection Jamming System

    Ask Lasest Price
    Brand Name : HEWEI
    Model Number : GTUS-IIP
    Certification : YES
    Payment Terms : T/T
    Supply Ability : 30 pieces per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

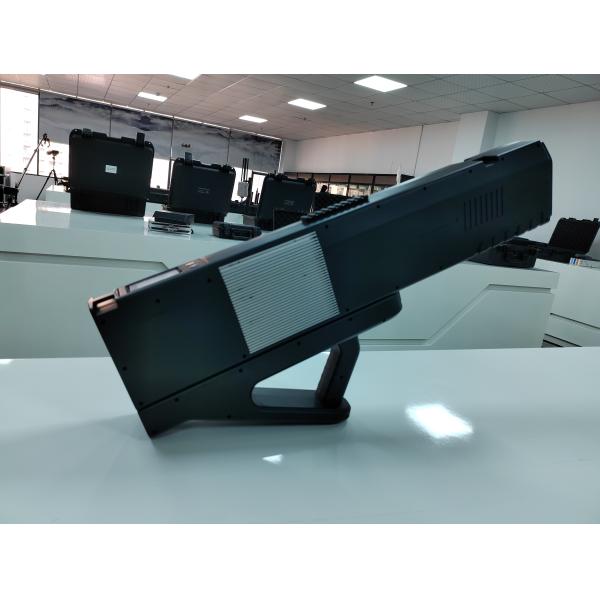

    Sound Vibration Warning Modes Portable UAV Detection Jamming System

    Sound, vibration warning modes, Portable UAV Detection & Jamming system


    Model:GTUS-IIP


    Description

    The system is equipped with a 2.8-inch bright IPS LCD screen, which has the function of detecting the orientation and model of the drone, and has the function of interfering with the frequency band used by the drone, which can drive the drone away or force the drone to land, and completely cut off the contact between the drone and the remote control or the ground station to ensure the safety of the low-altitude airspace in the region. Compared with common portable control equipment, this device adds device positioning and networking functions, and can link the back-end command system to facilitate the background command personnel to make transfers according to the distribution of equipment.



    Technical Specification


    Position Function Parameter
    Module typeHigh-precision L1, 15 dual-frequency GNSS receiving module
    Position systemBeidou, GPS
    PPS search accuracy±15ns
    Maximum speed515m/s
    Speed accuracy0.1m/s
    Dynamic heading Angle accuracy0.3
    Networking function parameters
    Communication methodUART
    Communication frequency band490MHz
    Transmission power1w
    Transmission distance2km
    Encryption methodAES dynamic encryption
    Detection technical parameters
    Detection frequencyDual frequency 2400~2485MHz, 5150~5950MHz
    Detection antenna gain2dBi
    Detection power consumption≤5W
    Detection modeOmnidirectional detection, directional detection
    Detection distance1-2km
    Number of detectionsMultiple targets
    Detection and identificationCommonly used UAV types
    Warning modeSound, vibration
    Jamming technical parameters
    Operating frequency900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz
    Output power140W
    Signal styleDSSS(spread spectrum) /FHSS (frequency hopping)
    Battery capacity2 pieces of 7000mah lithium batteries
    Endurance≥30 minutes (continuous launch); ≥120 minutes (30s launch and 90s stop)
    Product weightAbout 4.6kg
    Product sizeHost: 690*300*80mm
    Working modeExpel/Forced land mode; Each module can be individually controlled on and off
    Screen configuration2.8-inch high-lighted IPS screen
    scope magnificationMaximum 4 times
    Jamming distanceFlight height 100m: control distance ≥1700m, flight height 200m: control distance ≥2000m
